Champion Test Sockets are made for high speed, high reliability & low profile test sockets suitable for all testing and packages. Our sockets are built with advance engineering plastic and reliable Pogo pin contacts, High RF BeCe contact to meet today sophisticated test environments. The maintenance of socket is effortless and replacements of parts are easily rebuilt and replace on site.
Customized designs are available to suit different packages and test fixture.
Packages Available
- BGA , QFN, Leaded package, Optical Devices etc
Performance Features
- High Frequency up to 25.3 GHz @-1dB
- Contact resistance 20 miliOhms
- Self inductance <.75 nH
- Operating height as short as 3.02mm
- Pitch from 0.4 mm to 1.27 mm
- Operating Spring Force 30-40 grams
- Current max 8.5amp

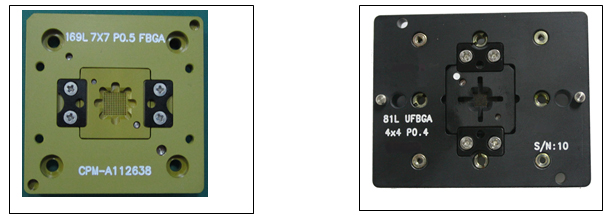

BAG Package
Leaded Package
Kelvin Contact
- High Frequency up to 20.3 GHz @-1dB
- Contact resistance 60 miliOhms
- Self inductance <.5 nH
- Operating height as short as 3.02mm
- Pitch from 0.4 mm to 1.27 mm
- Operating Spring Force 21 grams
Bece Contact
- Low Contact Force , < 15 g/pin
- Low Contact Resistance, < 20 mOhm
- High Compliance, 20 to 25% of uncompress length
- High Durability, > 100K
- High Temperature Range , -55 to 150 Degree C
- High pins count, > 5,000 I/O
- Fine Pitch , 0.4 mm & above
- Wide Bandwidth , 40 GHz@-1dB
- Short Electrical Path , < 1.0mm
